Akyapak AHK 20-08 (10mm max plate)
X Close
More Information
We aim to get back to you as soon as possible

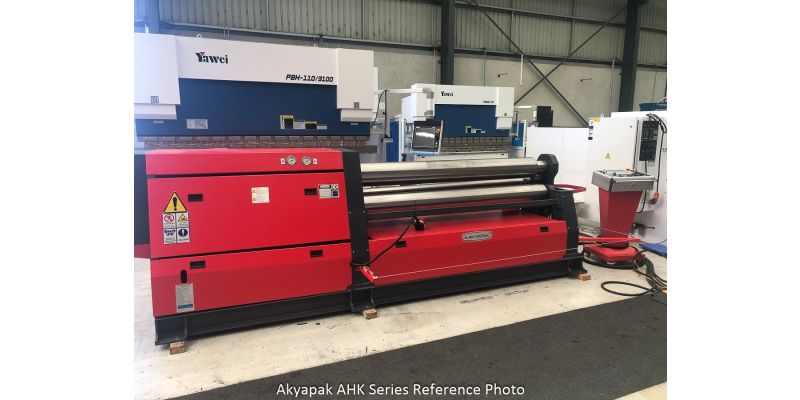

Product: Akyapak AHK 20-08 (10mm max plate)
2100mm maximum working length, 10mm maximum bending thickness, 8mm pre-bending capacity, 210mm top roll diameter, 190mm side rolls diameter, 7.5kW motor power, 3950mm machine length, 1160mm machine height, 1080mm machine width, 3950kg machine weight.
NEW Heavy Duty Akyapak AHK 25-08 3 Roll Hydraulic Plate Bending Machine.
Features include:
- Cone bending device
- Induction hardened rolls
- Digitial display for both side rolls
- Independant, movable control panel
- Two bending speeds
- Rolls mounted in a spherical roller bearing
- Control panel operation of hydraulic open/close of drop end. Upon open, upper roll will automatically tilt up.
- Control panel operation of cone opening/closing
Specifications:
- 2100mm maximum working length
- 10mm maximum bending thickness
- 8mm pre-bending capacity
- 210mm top roll diameter
- 190mm side rolls diameter
- 7.5kW motor power
- 3950mm machine length
- 1160mm machine height
- 1080mm machine width
- 3950kg machine weight
With production certified CE & ISO9001, you know that Akyapak are a manufacturer that produce machines of the highest quality, without compromise.
