Product: Akyapak AHK 30-16-20
3100mm maximum working length, 20mm maximum bending thickness, 16mm pre-bending capacity, 360mm top roll diameter, 330mm side rolls diameter, 15kW motor power, 5400mm machine length, 1900mm machine height, 1900mm machine width, 13200kg machine weight.

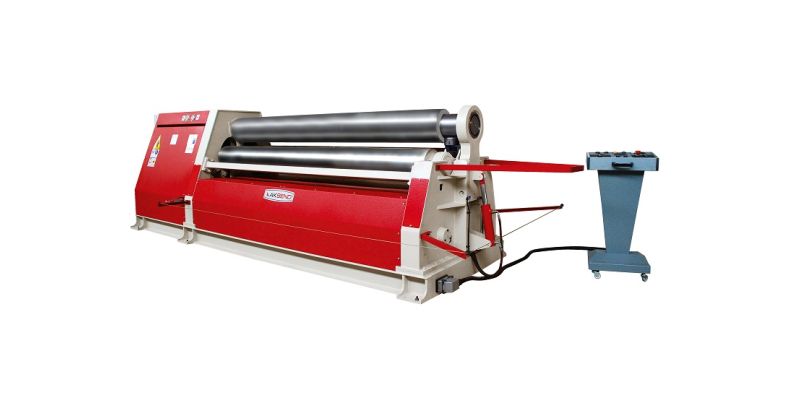

NEW Heavy Duty Akyapak AHK 30-16-20 3 Roll Hydraulic Plate Bending Machine.
Features include:
- Cone bending device
- Induction hardened rolls
- Digitial display for both side rolls
- Independant, movable control panel
- Two bending speeds
- Rolls mounted in a spherical roller bearing
- Control panel operation of hydraulic open/close of drop end. Upon open, upper roll will automatically tilt up.
- Control panel operation of cone opening/closing
Specifications:
- 3100mm maximum working length
- 20mm maximum bending thickness
- 16mm pre-bending capacity
- 360mm top roll diameter
- 330mm side rolls diameter
- 15kW motor power
- 5400mm machine length
- 1900mm machine height
- 1900mm machine width
- 13200kg machine weight
With production certified CE & ISO9001, you know that Akyapak are a manufacturer that produce machines of the highest quality, withouth compromise.
