Product: Akyapak AHK 40-04-06
4100mm maximum working length, 6mm maximum bending thickness, 4mm pre-bending capacity, 270mm top roll diameter, 250mm side rolls diameter, 7.5kW motor power, 6200mm machine length, 1400mm machine height, 1500mm machine width, 8000kg machine weight.

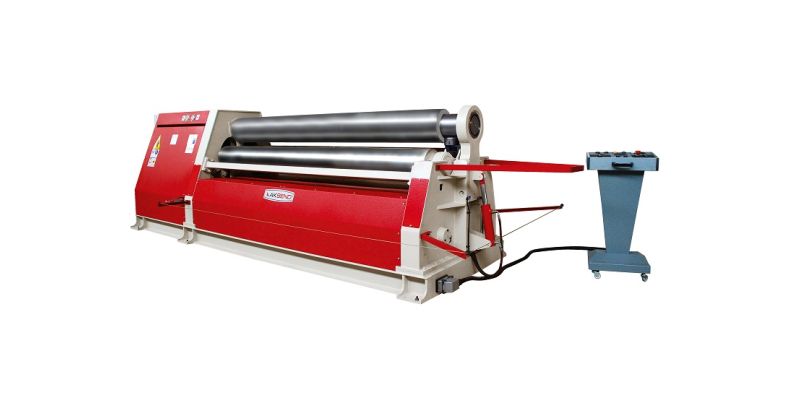

NEW Heavy Duty Akyapak AHK 40-04-06 3 Roll Hydraulic Plate Bending Machine.
Features include:
- Cone bending device
- Induction hardened rolls
- Digitial display for both side rolls
- Independant, movable control panel
- Two bending speeds
- Rolls mounted in a spherical roller bearing
- Control panel operation of hydraulic open/close of drop end. Upon open, upper roll will automatically tilt up.
- Control panel operation of cone opening/closing
Specifications:
- 4100mm maximum working length
- 6mm maximum bending thickness
- 4mm pre-bending capacity
- 270mm top roll diameter
- 250mm side rolls diameter
- 7.5kW motor power
- 6200mm machine length
- 1400mm machine height
- 1500mm machine width
- 8000kg machine weight
Optional Extras
- Side and central supports for bigger rolling diameters
- Infinitely variable speed of rotation
- Oil cooler
With production certified CE & ISO9001, you know that Akyapak are a manufacturer that produce machines of the highest quality, withouth compromise.
