Product: Akyapak AHS 12-04 (6mm max plate)
Induction hardened, bearing mounted rolls, 1250mm working length, 6mm maximum plate thickness, 4mm maximum prebend thickness, 4 rolls double initial pinch action, mobile control panel on wheels.

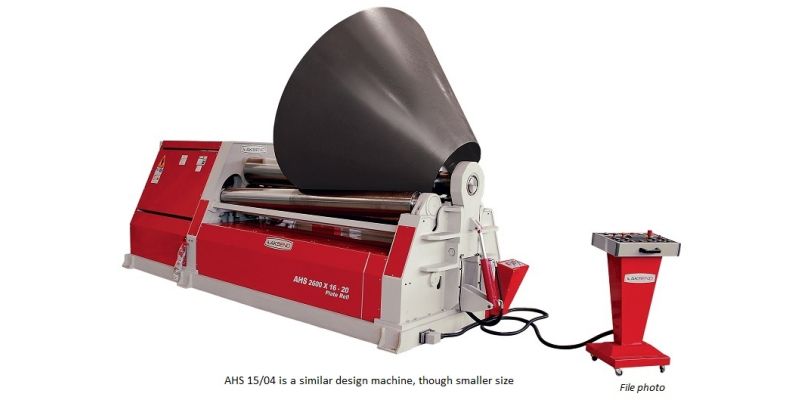

NEW Akyapak 12/04, 4 Roll Hydraulic Plate Rolling Machine.

Capacity

  • 1250mm working length
  • 6mm maximum plate thickness
  • 4mm maximum prebend thickness
  • 4 rolls, double initial pinch action
  • 140mm top roll diameter
  • 140mm bottom roll diameter
  • 120mm side rolls diameter

Features and inclusions

  • Induction hardened, bearing mounted rolls
  • Centre roll driven with hydraulic motor and planetary gear box
  • Two speed control
  • Digital display for side roll
  • Cone bending device, open/close operated from control panel
  • Drop end operated from control panel
  • Mobile control panel on wheel

General

  • 2.2kW motor
  • Dimensions: 3450 x 1280 x 1300mm (L x W x H)
  • Weight: 1900kg

Optional Extra (available on request)

  • Side supports for bigger rolling diameters
  • Centre supports for bigger rolling diameters
  • Oil cooler
  • Infinitely variable speed of rotation
