Akyapak AHS 15-04 (6mm max plate)

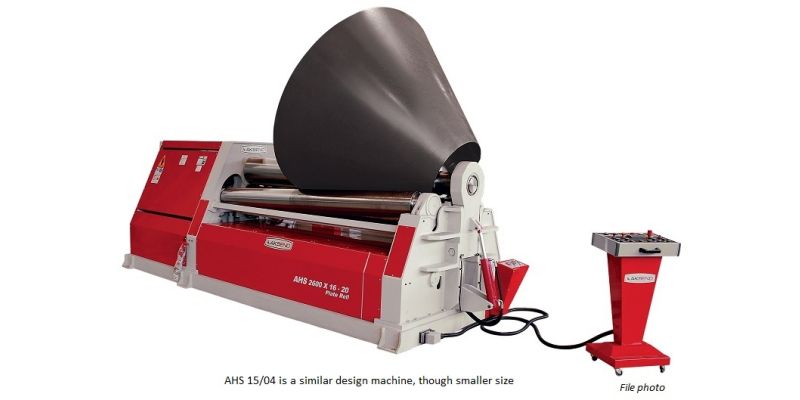

NEW Akyapak AHS 15/04, 4 Roll Hydraulic Plate Rolling Machine.

Capacity

• 1600mm working length
• 6mm maximum plate thickness
• 4mm maximum prebend thickness
• 4 rolls, double initial pinch action
• 140mm top roll diameter
• 140mm bottom roll diameter
• 120mm side rolls diameter

Features and inclusions

• Induction hardened, bearing mounted rolls
• Centre roll driven with hydraulic motor and planetary gear box
• Two speed control
• Digital display for side roll
• Cone bending device, open/close operated from control panel
• Drop end operated from control panel
• Mobile control panel on wheels

General

• 2.2kW motor
• Dimensions: 3700 x 1280 x 1300mm (L x W x H)
• Weight: 2000kg

Optional Extra (available on request)

• Side supports for bigger rolling diameters       add $8,000
• Centre supports for bigger rolling diameters   add $12,000
• Oil cooler                                                         add $1,900
• Variable speed of rotation                                add $5,900
• AK400 CNC control                                         add $19,000
