Product: Akyapak AHS 15-08 (10mm max plate)
Induction hardened, bearing mounted rolls, 1600mm working length, 10mm maximum plate thickness, 8mm maximum prebend thickness, 4 rolls double initial pinch action, mobile control panel on wheels.

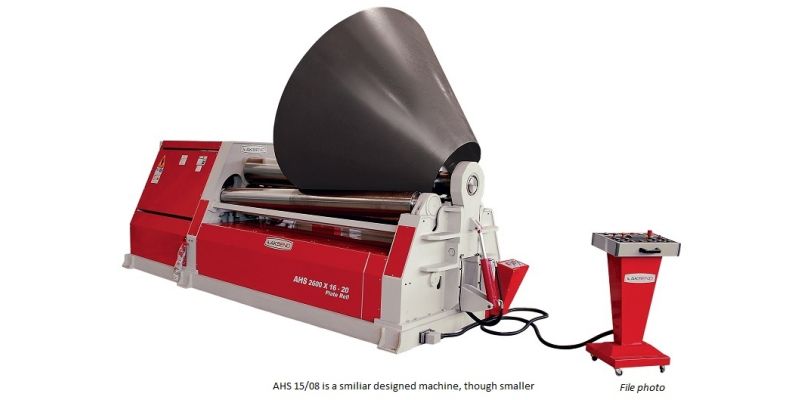

NEW Akyapak 15/08, 4 Roll Hydraulic Plate Rolling Machine.

Capacity

  • 1600mm working length
  • 10mm maximum plate thickness
  • 8mm maximum prebend thickness
  • 4 rolls, double initial pinch action
  • 190mm top roll diameter
  • 170mm bottom roll diameter
  • 150mm side rolls diameter

Features and inclusions

  • Induction hardened, bearing mounted rolls
  • Centre roll driven with hydraulic motor and planetary gear box
  • Two speed control
  • Digital display for side roll
  • Cone bending device, open/close operated from control panel
  • Drop end operated from control panel
  • Mobile control panel on wheels

General

  • 3kW motor
  • Dimensions: 3650 x 1040 x 1140mm (L x W x H)
  • Weight: 2020kg

Optional Extra (available on request)

  • Side supports for bigger rolling diameters
  • Centre supports for bigger rolling diameters
  • Oil cooler
  • Infinitely variable speed of rotation
