Product: Akyapak AHS 20-02 (4mm max plate)
Induction hardened, bearing mounted rolls, 2100mm working length, 4mm maximum plate thickness, 2mm maximum prebend thickness, 4 rolls double initial pinch action, mobile control panel on wheels.

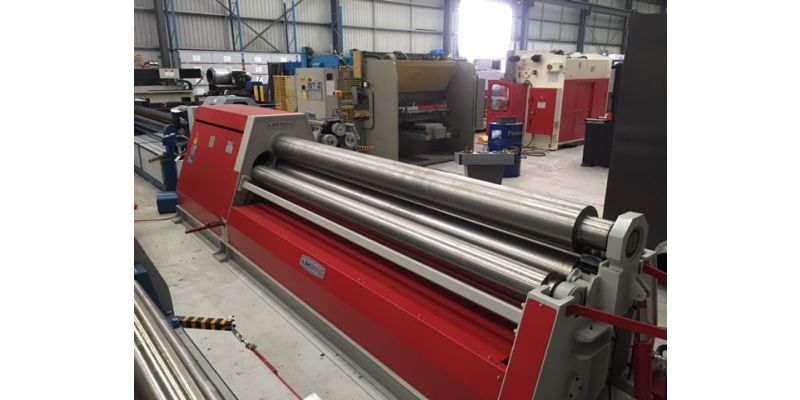

NEW Akyapak AHS 20/02, 4 Roll Hydraulic Plate Rolling Machine.
Capacity
- 2100mm working length
- 4mm maximum plate thickness
- 2mm maximum prebend thickness
- 4 rolls, double initial pinch action
- 140mm top roll diameter
- 140mm bottom roll diameter
- 120mm side rolls diameter
Features and inclusions
- Induction hardened, bearing mounted rolls
- Centre roll driven with hydraulic motor and planetary gear box
- Two speed control
- Digital display for side roll
- Cone bending device, open/close operated from control panel
- Drop end operated from control panel
- Mobile control panel on wheels
General
- 2.2kW motor
- Dimensions: 4000 x 1040 x 1140mm (L x W x H)
- Weight: 2240kg
Optional Extra (available on request)
- Side supports for bigger rolling diameters
- Centre supports for bigger rolling diameters
- Oil cooler
- Infinitely variable speed of rotation
