Product: Akyapak AHS 20 35-45
Induction hardened, bearing mounted rolls, 2100mm working length, 45mm maximum plate thickness, 35mm maximum prebend thickness, 4 rolls double initial pinch action, mobile control panel on wheels.

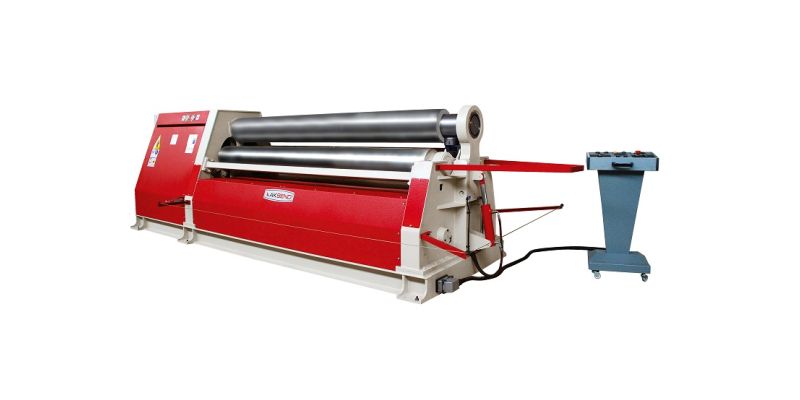

NEW Akyapak 20 35-45, 4 Roll Hydraulic Plate Rolling Machine.
Capacity
- 2100mm working length
- 45mm maximum plate thickness
- 35mm maximum prebend thickness
- 4 rolls, double initial pinch action
- 430mm top roll diameter
- 390mm bottom roll diameter
- 330mm side rolls diameter
Features and inclusions
- Induction hardened, bearing mounted rolls
- Centre roll driven with hydraulic motor and planetary gear box
- Two speed control
- Digital display for side roll
- Cone bending device, open/close operated from control panel
- Drop end operated from control panel
- Mobile control panel on wheels
General
- 30kW motor
- Dimensions: 5300 x 2585 x 2300mm (L x W x H)
- Weight: 24750kg
Optional Extra (available on request)
- Side and central supports for bigger rolling diameters
- Infinitely variable speed of rotation
- Oil cooler
