Product: Akyapak AHS 25-08 (10mm max plate)
Induction hardened, bearing mounted rolls, 2500mm working length, 10mm maximum plate thickness, 8mm maximum prebend thickness, 4 rolls double initial pinch action, mobile control panel on wheels.

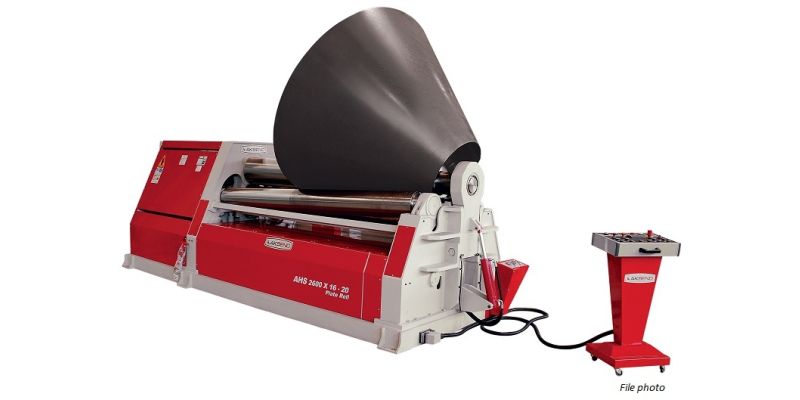

NEW Akyapak 25/08, 4 Roll Hydraulic Plate Rolling Machine.
Capacity
- 2500mm working length
- 10mm maximum plate thickness
- 8mm maximum prebend thickness
- 4 rolls, double initial pinch action
- 230mm top roll diameter
- 210mm bottom roll diameter
- 190mm side rolls diameter
Features and inclusions
- Induction hardened, bearing mounted rolls
- Centre roll driven with hydraulic motor and planetary gear box
- Two speed control
- Digital display for side roll
- Cone bending device, open/close operated from control panel
- Drop end operated from control panel
- Mobile control panel on wheels
General
- 7.5kW motor
- Dimensions: 4640 x 1300 x 1390mm (L x W x H)
- Weight: 5340kg
Optional Extra (available on request)
- Side supports for bigger rolling diameters
- Centre supports for bigger rolling diameters
- Oil cooler
- Infinitely variable speed of rotation
