Product: Akyapak AHS 30 06-08
Induction hardened, bearing mounted rolls, 3100mm working length, 8mm maximum plate thickness, 6mm maximum prebend thickness, 4 rolls double initial pinch action, mobile control panel on wheels.

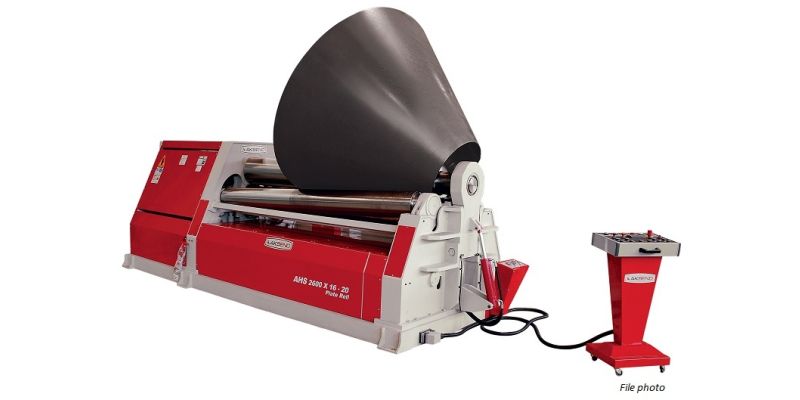

NEW Akyapak 30/06-08, 4 Roll Hydraulic Plate Rolling Machine.

Capacity

  • 3100mm working length
  • 8mm maximum plate thickness
  • 6mm maximum prebend thickness
  • 4 rolls, double initial pinch action
  • 230mm top roll diameter
  • 210mm bottom roll diameter
  • 190mm side rolls diameter

Features and inclusions

  • Induction hardened, bearing mounted rolls
  • Centre roll driven with hydraulic motor and planetary gear box
  • Two speed control
  • Digital display for side roll
  • Cone bending device, open/close operated from control panel
  • Drop end operated from control panel
  • Mobile control panel on wheels

General

  • 7.5kW motor
  • Dimensions: 5150 x 1300 x 1390mm (L x W x H)
  • Weight: 6020kg

Optional Extra (available on request)

  • Side and central supports for bigger rolling diameters
  • Changeable top roll with smaller diameters
  • Infinitely variable speed of rotation
  • CNC graphic control
