Product: Akyapak APK 121
Angle iron (leg out): 50 x 50 x 5mm - 650mm diameter, 100 x 100 x 10mm - 1100mm diameter, 120 x 120 x 15mm - 1300mm diameter, CE certified, horizontal and vertical working positions, roving control panel with foot pedal, hydraulic guide rolls.

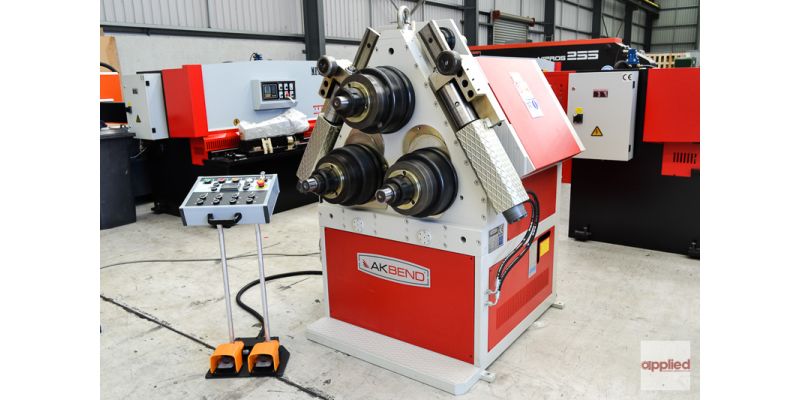

NEW Akyapak APK 121 Section and Pipe Rolling Machine.
Capacity
- Angle iron (leg out): 50 x 50 x 5mm - 650mm diameter, 100 x 100 x 10mm - 1100mm diameter, 120 x 120 x 15mm - 1300mm diameter
- Angle iron (leg in): 50 x 50 x 5mm - 650mm diameter, 80 x 80 x 8mm - 900mm diameter, 120 x 120 x 15mm - 1300mm diameter
- Flat bar (on edge): 40 x 10mm - 500mm diameter, 125 x 25mm - 850mm diameter, 140 x 30mm - 3000mm diameter
- Flat bar: 200 x 50mm - 1000mm diameter
- Round tube dia 50 x 2mm to minimum dia 600mm, dia 160 x 4mm to minimum dia 3000mm
- Round pipe dia 101.6 x 12mm to minimum dia 1200mm, dia 139.7 x 5mm to minimum 1600mm
Features and Inclusions
- Set of standard rolls
- Special steel shafts, hardened and ground
- Hydraulic up/down for lower rolls
- Digital display for lower rolls
- Horizontal and vertical working positions
- Hydraulic guide rolls
- Rolls driven by hydraulic planetary gear box
- CE certified
- Roving control panel with foot pedal
General
- Motor power: 15kW
- 390mm diameter of rolls
- 120mm shaft diameter
- Dimensions: 1450 x 1985 x 2040mm (L x W x H)
- Weight: 4720kg
Optional Extras (available on request)
- Special rolls for tubes/pipe and profiles
- Spiral bending device
- Variable speed rotation
- U-I-H profile pulling device
Akyapak is a premium European manufacturer from Turkey, and their quality products are built without compromise.
