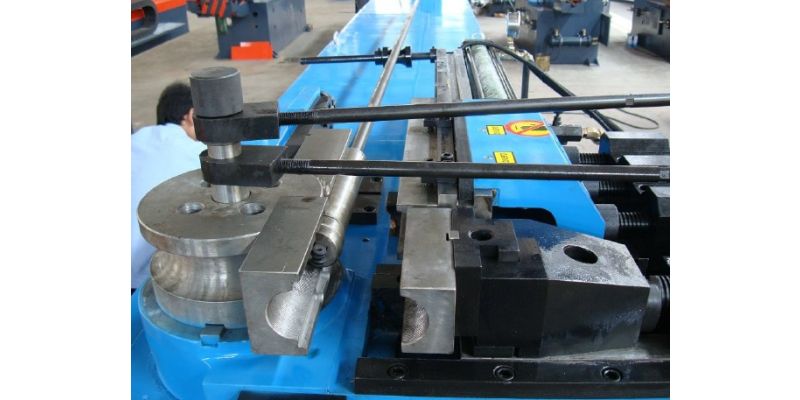

Product: Bossray SB-75NC Bender
76.2 x 5mm bending capacity (aluminium tubes), 460mm max bending radius, R45mm 1.5D of pipe OD minimum bending radius, 3300mm mandrel length, NC controlled.
NEW Bossray SB-75NC CNC Tube Bender.
Features include:
- Maximum bending capacity: 76.2mm diam x 5mm (aluminium tubes)
- Maximum bending radius: 460mm
- Minimum bending radius: R45mm 1.5D of pipe OD
- Mandrel length: 3300mm
- Maximum bending angle: 190 degrees
- Control: NC
- Bending unit: 16 pieces
- Bending accuracy: +/-0.1mm
- Motor power: 11kW
- Maximum pressure: 14Mpa
- Hydraulic control system: Magnetic exchange valve (Yuken - Japan)
- Oil tank: 200L
- Machine weight: 2500kg
- Machine size: 4250 x 1100 x 1200mm (LxWxH)
