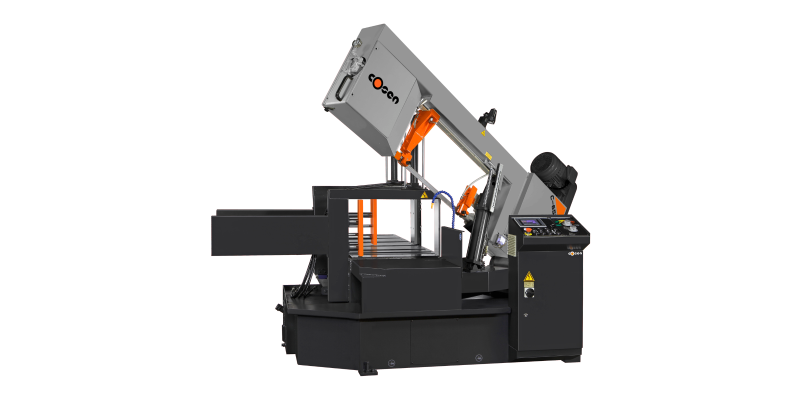

Product: Cosen C-650MNC Bandsaw
60 degree miter cutting, 380 x 650mm rectangle, 420mm round, programmable control, automatic kerf compensation.
NEW Cosen fully automatic horizontal bandsaw, model AH-300H.
Features include:
- Programmable controller with large job memory
- Automatic kerf compensation
- PLC controls all electric and hydraulic functions including; down feeds, vices, blade tensioner and nesting vice
- Swarf conveyor and cleaning hose
- Capacity at 90 degrees:
- 650 x 380mm rectangle
- 420mm round
- Capacity at 45 degrees:
- 400 x 400mm rectangle
- 400mm round
- Capacity at 60 degrees:
- 400 x 250mm rectangle
- 250mm round
- 800-6500mm feed stroke
- 5300 x 41 x 1.3mm blade size
- Variable speed 20-100m/min
- 750mm table height
- Motor power: 5.6kW
- Machine weight: 2900kg
- Machine size: 3660 x 2900 x 2500mm
