Product: Cosen CNC-800DM Bandsaw
800 x 400mm capacity at 90 degrees, 500mm round at 90 degrees, 1500-6500mm feed stroke, 20-100m/min blade speeds, 1085mm table height, 5.6kW motor

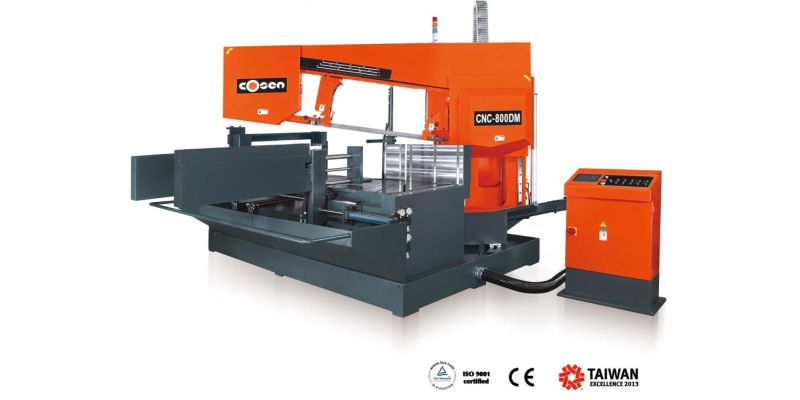

NEW Cosen CNC-800DM NC Dual Column Double Mitre Cutting Bandsaw.
Features include:
- Programmable controller with large job memory
- Automatic kerf compensation
- PLC controls all electric and hydraulic functions including; down feeds, vices, blade tensioner and nesting vice
- Hydraulic chip conveyor and cleaning hose
Capacity at 90 degrees:
- 800 x 400mm rectangle
- 500mm round
Capacity at 45 degrees:
- 550 x 400mm rectangle
- 450mm round
Capacity at 60 degrees:
- 400 x 400mm rectangle
- 400mm round
- 1500-6500mm feed stroke
- 6600 x 54x 1.3mm blade size
- Variable speed 20-100m/min
- 1085mm table height
- bi-metallic blade
- Automatic wedging resistance
- One spot full stroke top clamp
- motor power: 5.6kW
- Machine weight: 6200kg
- machine size: 5200 x 3530 x 2725mm
