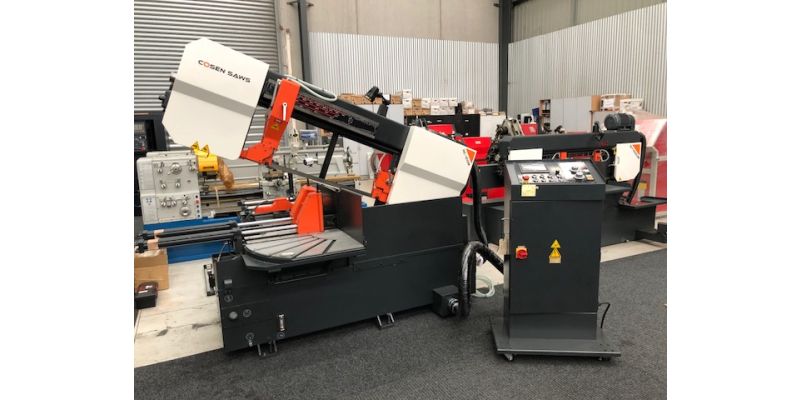

Product: Cosen NC-510M Bandsaw
510 x 330mm capacity at 0 degrees, 360mm round at 0 degrees, 20-100m/min blade speeds, 783mm table height, 3.75kW motor
NEW Cosen C-500MNC Programmable NC Mitre Cutting Bandsaw.
Features include:
- Programmable controller with large job memory
- Automatic kerf compensation
- PLC controls all electric and hydraulic functions including;
down feeds, vices, blade tensioner and nesting vice - Swarf conveyor and cleaning hose
- Capacity at 90 degrees:
- 500 x 280mm rectangle
- 330mm round
- Capacity at 45 degrees:
- 265 x 265mm rectangle
- 290mm round
- 600-6500mm feed stroke
- 4670 x 34 x 1.1mm blade size
- Variable speed 20-100m/min
- 720mm table height
- Motor power: 3.75kW
- Machine weight: 1600kg
- Machine size: 2900 x 2600 x 2200mm
