Product: Hermle C42 MT 5-Axis Machining Centre
Manufactured on demand for customer order. 800 x 800 x 550mm x/y/z travel, 10000/15000/18000/25000rpm spindle speeds. 45(60)/45(60)/40(60)m/min rapid linear traverse x/y/z(dynamic), iTNC 530 / S 840 D sl control unit

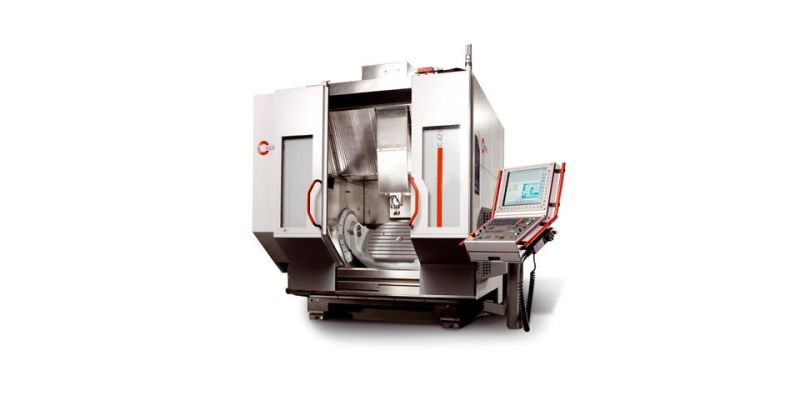

NEW Hermle C42/MT CNC Vertical 5 Axis Machining Centre.
Features include:
- Traverse X-Y-Z: 800 x 800 x 550mm
- Spindle speed: 10000/15000/18000/25000rpm
- Rapid traverse X-Y-Z (Dynamic): 45(60) - 45(60) - 40(60)m/min
- Control unit: iTNC 530 / S 840 D sl
Rigid Clamping Table
- Size: 1050 x 805mm
- Max. table load: 2000kg
NC swivelling rotary tables
- Table with worm: 420mm diam. / 800mm diam. x 630mm
- Swivelling range: +/- 130 degrees / +/- 130 degrees
- A axis speed: 25 or 55*rpm / 15 or 25*rpm
- C axis speed: 35rpm / 25rpm
- Max. table load: 400 or 600*kg / 1000 or 1400*kg
- Table with torque: 440mm diam. / 800mm diam. x 630mm
- Swivelling range: +/- 130 degrees / +/- 130 degrees
- A/C axis speed: 55*or 65rpm / 25* or 65rpm
- Max. table load: 450kg / 1400kg
(* With tandem drive)
C42 U MT dynamic NC swivelling rotary table
- Control unit: TNC 640 / S 840 D sl
- Table with torque: 750mm diam.
- Swivelling range: +/- 130 degrees
- A/C axis speed: 25/800rpm
- Max. turning table load: 700kg
- Max. milling table load: 1400kg
The highly dynamic machining centre, refined and enhanced for 5 axes - 5 side machining. Features galore to ensure high precision, cost effective part production.
Wide range of automation solutions extends the application range many times over.
