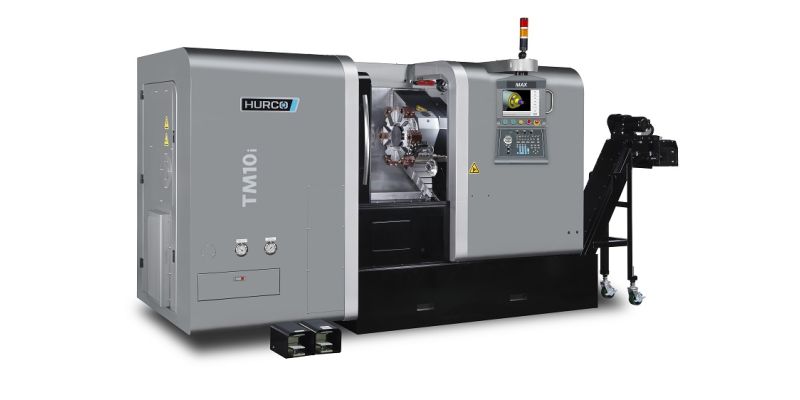

Product: HURCO TM-10i CNC Lathe
582mm max swing, 450mm max turning diameter, 720mm max turning length, 78mm bar work capacity, 3000 rpm, Hurco Winmax CNC control, 12 station turret, chip conveyor
New HURCO TM-10i CNC lathe with Hurco Winmax CNC Controller.
Features and inclusions
Capacity:
- X-Travel 250 mm
- Z-Travel 750 mm
- Distance Between centre 695 mm
- Swing over bed Ø 582 mm
- Swing over cross slide Ø 402 mm
- Maximum Turning diameter Ø 450 mm
- Maximum Turning length 720 mm
- Spindle speed (RPM) 3,000
- Spindle horsepower 29.7 HP / 22kW
- Spindle Chuck 254 mm
- Spindle Bore diameter Ø 92 mm
- Max. bar capacity Ø 78 mm
- X-axis Rapid Feed rate 19 m/min
- Z-axis Rapid Feed rate 24 m/min
- Turret Tool stations 12
- Max Boring bar diameter Ø 40 mm
Machine include accessories:
- Tailstock
- Chip Conveyor
- Transformer
- Hydraulic Chuck 10"
- Soft Jaws, 1 set
- Renishaw Tool-presetter
- Bar Feeder 80 mm diameter bar SL-80
- Bar Feeder interface (Non-Hurco)
- Part catcher
- Hard Jaws, 1 Set
Software
- Winmax Desktop (Lathe)
- Ultimonitor
