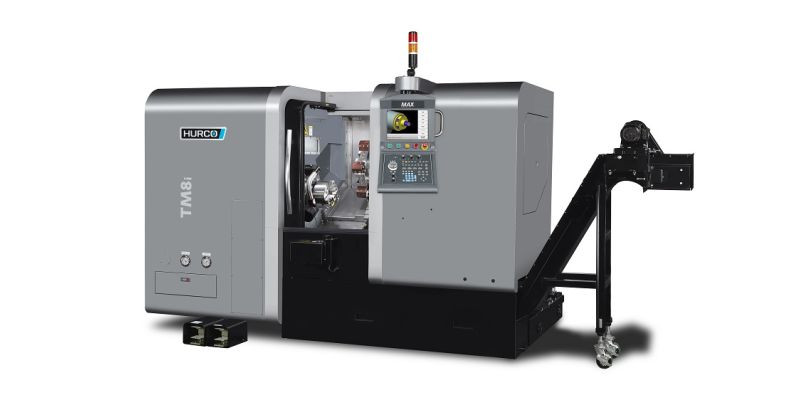

HURCO TM-8i CNC Lathe
X Close
More Information
We aim to get back to you as soon as possible
Product: HURCO TM-8i CNC Lathe
525mm max swing, 356mm max turning diameter, 446mm max turning length, 52mm bar work capacity, 4800 rpm, Hurco Winmax CNC control, 10 station turret, chip conveyor
New HURCO TM-8i CNC lathe with Hurco Winmax CNC Controller.
Features and inclusions
CapacityL:
- X-Travel 203 mm
- Z-Travel 508 mm
- Distance Between centre 711 mm
- Swing over bed Ø 525 mm
- Swing over cross slide Ø 300 mm
- Maximum Turning diameter Ø 356 mm
- Maximum Turning length 446 mm
- Spindle speed (RPM) 4,800
- Spindle horsepower 22.0 HP / 16kW
- Spindle Chuck 203 mm
- Spindle Bore diameter Ø 62 mm
- Max. bar capacity Ø 52 mm
- X-axis Rapid Feed rate 19 m/min
- Y-axis Rapid Feed rate 24 m/min
- Turret Tool stations 10
- Max Boring bar diameter Ø 32 mm
Machine include accessories:
- Tailstock
- Chip Conveyor
- Transformer
- Hydraulic Chuck 8"
- Soft Jaws, 1 set
- Renishaw Tool-presetter
- Bar Feeder interface
- Part catcher
- Hard Jaws, 1 Set
Software Included:
- Winmax Desktop (Lathe)
- Ultimonitor
