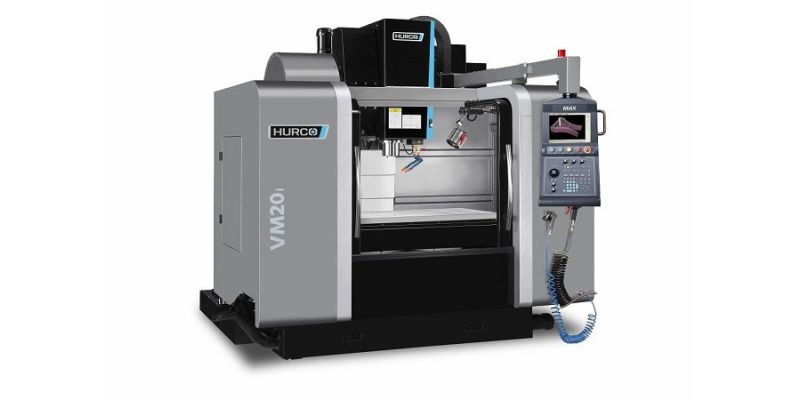

HURCO VM-20i CNC Vertical Machining Centre

New HURCO VM-20i Compact CNC Vertical Machining Centre.

Features and inclusions:

Table:

• 1168 x 508 mm work table
• 544 kg maximum load
• 5 x 18 x 100 mm table t-slots

Travels:

• 1016 mm X travel
• 508 mm Y travel
• 508 mm Z travel
• 102-610 mm spindle nose to table

Spindle:

• BT40 spindle taper
• 10,000 rpm spindle speed
• 15 kw / 20 HP motor power
• 102 Nm @ 1,450 rpm spindle torque

Motion:

• 24 m/min rapid traverse X/Y/Z
• 15.2 m/min cutting feed rates X/Y/Z

Automatic Tool Changer

• 20 stations
• 250 mm maximum tool length
• 7 kg maximum tool weight

Weight / Dimensions:

• 4,280 kg machine weight (approx)
• 4,720 kg machine shipped weight (approx)

Features:

• Hurco Winmax CNC control (600 blocks look ahead)
• 2 GB RAM, 64 GB Hard Drive
• Ultimotion Software (Enabling upto 10,000 blocks look ahead)
• Auto Interrupt Cycle
• Renishaw Tool measurement system TS-27R
• Spindle Chiller
• Spindle Air Blast
• 10,000 rpm spindle speed
• 20 tools ATC
• Chip auger
• Rigid Tapping
• Air Purged Cartridge Spindle Design
• Metal Telescopic Way Covers
• Automatic Central Lubrication System
• Power Cabinet Heat Exchanger
• Direct Drive Z axis; No Counterbalance
• Right side LED work light
• Double Nut Ball Screws
• Solid Cast Iron Frame
• Air Purged Cartridge Spindle Design
• Flood Coolant Assembly
• RS 232 & RJ 45 Ports for DNC
• USB Port
• Transformer
• Ultimonitor function
• Extended Shop Floor function
