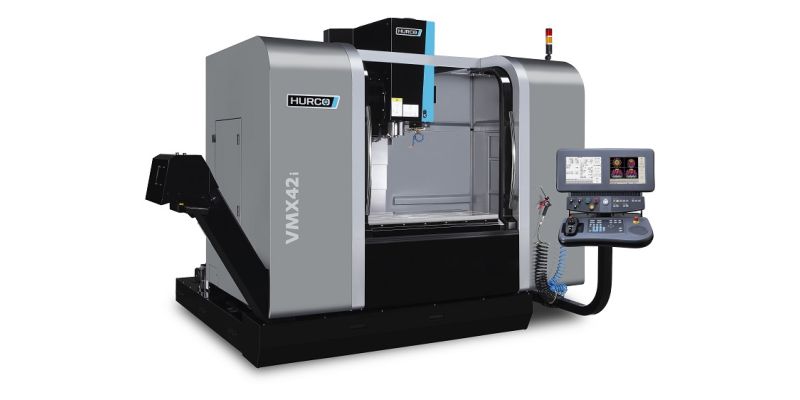

HURCO VMX-42Ei CNC Vertical Machining Centre

New Hurco VMX-42Ei Compact CNC Vertical Machining Centre.

Features and inclusions:

Table:

• 1,270 x 610 mm work table
• 1,360 kg maximum load
• 5 x 18 x 100 mm table t-slots

Travels:

• 1,067 mm X travel
• 610 mm Y travel
• 610 mm Z travel

Spindle:

• BT40 spindle taper
• 12,000 rpm spindle speed
• 18kw / 24HP motor power
• 237 Nm @ 720 rpm spindle torque (1 min.)
• 152-762 mm spindle nose to table

Motion:

• 35 m/min rapid traverse X/Y
• 30 m/min rapid traverse Z
• 22.9 m/min cutting feed rates X/Y
• 15.2 m/min cutting feed rates Z
• 0.010 mm positioning accuracy
• 0.005 mm repeatability

Automatic Tool Changer

• 24 stations
• 300 mm maximum tool length
• 3 second tool change time

Weight / Dimensions:

• 6,610 kg machine weight (approx)
• 6,850 kg machine shipped weight (approx)

Features:

• Hurco Winmax CNC control (600 blocks look ahead)
• 2 GB RAM, 64 GB Hard Drive
• Ultimotion Software (Enabling upto 10,000 blocks look ahead)
• Auto Interrupt Cycle
• Spindle Chiller
• Spindle Air Blast
• 12,000 rpm spindle speed
• 24 tools ATC
• Renishaw Tool measurement system TS-27R
• Chip conveyor
• Rigid Tapping
• Metal Telescopic Way Covers
• Automatic Central Lubrication System
• Power Cabinet Heat Exchanger
• Direct Drive Z axis; No Counterbalance
• Right side LED work light
• Double Nut Ball Screws
• Solid Cast Iron Frame
• Air Purged Cartridge Spindle Design
• Flood Coolant Assembly
• RS 232 & RJ 45 Ports for DNC
• USB Port
• Transformer
• Ultimonitor function
• Extended Shop Floor function
