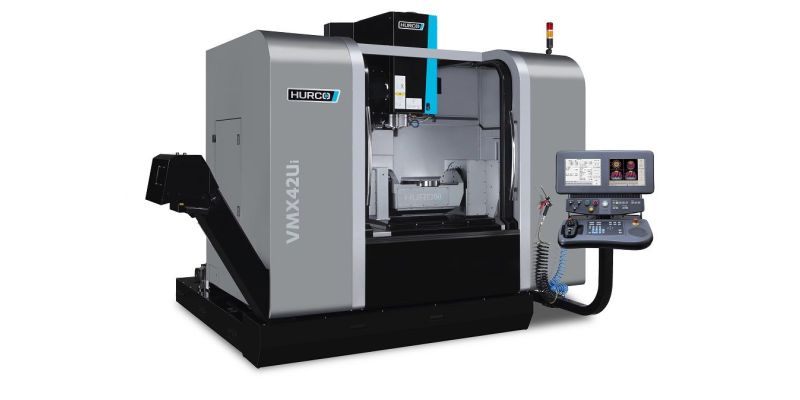

HURCO VMX-42Ui CNC Vertical 5 Axes Machining Centre
X Close
More Information
We aim to get back to you as soon as possible
Product: HURCO VMX-42Ui CNC Vertical 5 Axes Machining Centre
1067mm x-axis travel, 610mm y-axis travel, 520mm z-axis travel, 350mm rotary table , 250kg max load, 12000rpm, BT40 spindle taper, 18 kW spindle motor, HURCO control
New HURCO VMX-42Ui CNC VERTICAL 5 Axes Machining Centre.
Features and inclusions:
Travel:
- 1067 mm x-axis travel
- 610 mm y-axis travel
- 520 mm z-axis travel
- + 30/-110 deg A axis movement
- 360 deg C axis movement
Table:
- 350 mm rotary table
- 250 kg max load
- Ø 475 x 305 mm Max workpiece size
Spindle:
- 12000 rpm spindle speed
- 18 kW spindle motor
- 237 Nm spindle motor torque
- BT#40 spindle taper
Feedrate:
- 35 m/min x-axis rapid traverse
- 35 m/min y-axis rapid traverse
- 30 m/min z-axis rapid traverse
- 22.9 m/min cutting feedrate
- 25 rpm A axis Max rotation speed
- 25 rpm C axis Max rotation speed
Automatic Tool Changer:
General:
- Machine Floor Space : 2800 x 2210 x 2991 mm (L x W x H)
- Nett machine weight: 7,200 kg
Included:
- - Hurco Winmax CNC control (600 blocks look ahead)
- 2 GB RAM, 64 GB Hard Drive
- Ultimotion Software (Enabling upto 10,000 blocks look ahead)
- SFQ surface quality and throughput control
- Tool Centre Point Management
- Auto Interrupt Cycle
- Renishaw Tool measurement system TS-27R
- Renishaw OMP-400 Part probing system
- Renishaw Datum Sphere
- HURCO Automated Centreline Software
- 20 Bar Spindle through Coolant
- Spindle Chiller
- Spindle Air Blast
- 12,000 rpm spindle speed
- 40 tools ATC
- Chip conveyor with trolley
- X, Y, Z axes Linear feedback scales
- RS 232 & RJ 45 Ports for DNC
- USB Ports
- Transformer
- Ultimonitor function
- Extended Shop Floor function
