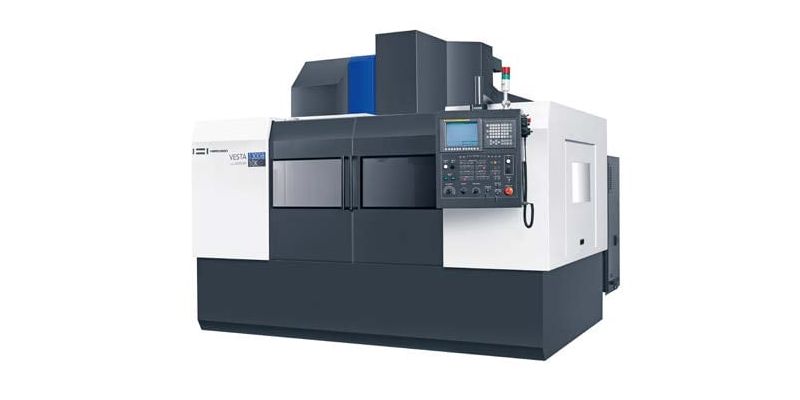

Product: Hwacheon Vesta-1050B CNC Machining Centre
VESTA-1050B designed in highly rigid box way design on all axes for ultimate precision and stability. These machines can be configured with a wide choice of options to satisfy your production needs. 8,000 rpm or 6,000 rpm high-speed spindles.
NEW Hwacheon Vesta-1050B CNC Vertical Machining Centre:
Configurable to meet the demands of modern manufacturing, these high precision, heavy duty machines offer efficient, cost effective machining solutions.
Features include:
- Stroke (X/Y/Z) [mm]: 1050/600/600
- Feedrate Rapid Speed (X/Y/Z) [m/min]: 24/24/18
- Table Size (Width x Length) [mm]: 1,150 x 600
- Table Loading Capacity [kg]: 1,000
- Max. Spindle Speed [rpm]: 8,000(6,000)
- Spindle Motor [kW]: 18.5/15
- Type of Tool Shank: BT-40 (Opt.CAT-40) BT-50 (Opt.CAT-50)
- Tool Storage Capacity [Amount]: 24 (Opt. 30)
- Floor Space (Length X Width) [mm]: 4,220 X 2,247
- NC System: Fanuc 0i-MF
