Product: Microweily TY-1860TS Lathe
458mm swing over bed, 288mm swing over cross slide, 640mm swing in gap diameter, 230mm centre height, 1530mm between centres, 2 axis Mitutoyo DRO

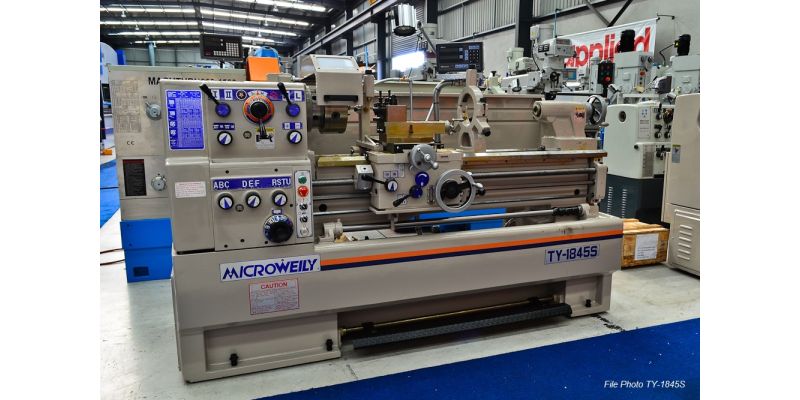

New Microweily TY-1860TS Centre Lathe.
Features and inclusions:
- 458 mm swing over bed
- 288 mm swing over cross slide
- 640 mm swing in gap diameter
- 230 mm centre height
- 1530 mm between centres
- 300 mm bed width
- 60 mm spindle bore
- D1-6 spindle nose
- 30-2000 rpm spindle speed (12)
- 120 mm tailstock quill travel
- MT4 tailstock taper
- 7.5 HP main motor
- Mitutoyo 2 axis DRO
- 1 x steady rest
- 1 x follow rest
- 8 inch Heavy Duty self centering 3 jaw chuck
- 10 inch 4 jaw independent chuck
- Rear splash guard
- Headstock chuck guard with micro switch
- Quick change tool post with 6 holders
- Halogen lamp
- CE approved Electrical panel and switches
- Machine size: 2755 x 980 x 1230 mm
- Machine weight: 2,000 kg
