Product: Microweily TY-2060 Lathe
510mm swing over bed, 330mm swing over cross slide, 680mm in gap diameter, 255mm centre height, 1530mm between centres, 2 axis Mitutoyo DRO

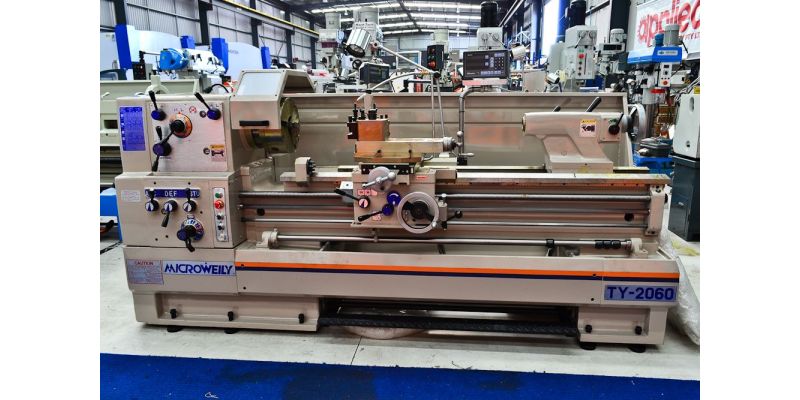

NEW Microweily TY-2060 Centre Lathe.
Features include:
- 510mm swing over bed
- 330mm swing over cross slide
- 680mm in gap diameter
- 255mm centre height
- 1530mm between centres
- 400mm bed width
- 80mm spindle bore
- D1-8 spindle nose
- 20-1550rpm (12)
- 75mm tailstock quill diamter
- 160mm tailstock quill travel
- MT5 tailstock taper
- 15HP main motor
- Mitutoyo 2 axis DRO
- Follow rest
- Steady Rest(max.opening 240mm)
- 3 jaw chuck, 4 jaw chuck and face plate
- Rear splash guard
- Headstock chuck guard with micro switch
- Quick change tool post with 6 holders
- Halogen lamp
- Machine size: 3048 x 1280 x 1255mm
- Machine weight: 2230kg
