Product: Microweily TY-2280
560 mm swing over bed, 360 mm swing over cross slide, 745 mm in gap diameter, 280 mm centre height, 2040 mm between centres, 2 axis Mitutoyo DRO

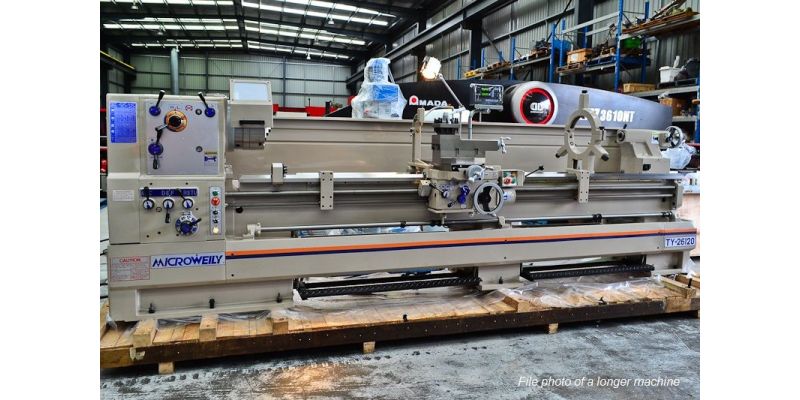

NEW Microweily TY-2280 Centre Lathe.
Features and inclusions:
- 560 mm swing over bed
- 360 mm swing over cross slide
- 745 mm in gap diameter
- 280 mm centre height
- 2040 mm between centres
- 400 mm bed width
- 105 mm spindle bore
- D1-11 spindle nose
- 15-1200 rpm (12 speed)
- 75 mm tailstock quill diameter
- 160 mm tailstock quill travel
- MT 5 tailstock taper
- 2 Speed Tailstock
- 15 HP main motor
- Mitutoyo 2 axis DRO
- 1 x Follow rest
- 1 x Steady Rest (bearing shaft, 3"-8")
- 12" 3 jaw self centering chuck
- 18" 4 jaw independent chuck
- Rear splash guard
- Headstock chuck guard with micro switch
- Quick change tool post with 6 holders
- Halogen lamp
- Longitudinal rapid traverse
- Electrical panel and switch with CE approved
DIMENSIONS :
- Machine size: 3558 x 1280 x 1305 mm
- Nett Machine weight: 2530 kg
- Gross Machine weight: 2800 kg
