Product: MYDAY 3A-38160B9 Lathe
960mm swing over bed, 4000mm between centres, 1510mm swing in gap, 230mm hollow spindle bore, 30HP main drive motor

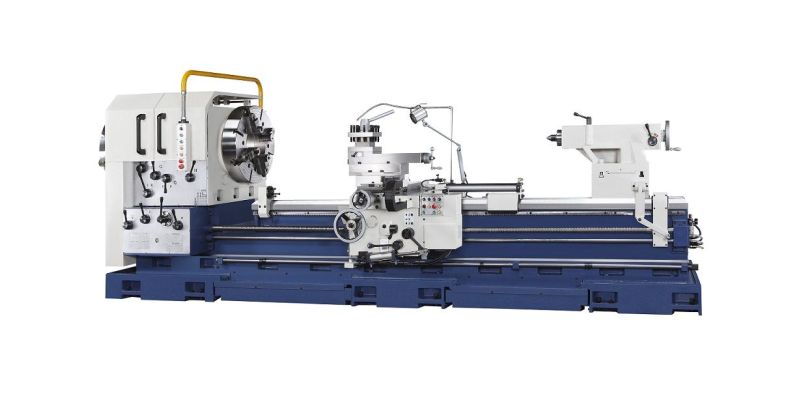

NEW MYDAY 3A-38160B9 Oil Country Lathe.
Features include:
- Center height: 480 mm
- Swing over bed: 960 mm
- Swing over cross slide: 650 mm
- Swing over gap: 1510 mm
- Width of gap: 570 mm
- Width of bed: 560 mm
- Distance betn centers: 4000 mm
- Spindle bore: 230 mm
- Spindle nose: A2-15
- Spindle speed (12 Steps): 6-400 rpm
- Tailstock quill diameter: 140 mm
- Taper of center: MT#6
- Quill travel: 300 mm
- Cross feeds: 0.065~0.96 (48 kinds)
- Cross travel: 540 mm
- Compound rest travel: 300 mm
- Tool size: 40 x 40mm
- Longitudinal feeds 0.13~1.92 (48 kinds)
- Leadscrew diameter: 50mm x 2TPI
- Threading range, metric: 2-30 mm / Pitch (48 kinds)
- Threading range, inch: 1-15 TPI (48 kinds)
- Main spindle motor: 30 HP
- Rapid motor: 1/2 HP
- Coolant pump: 1/4 HP
- Oil pump: 12 W
Included
- Spindle magnetic brake
- Auto lubrication system
- Coolant system
- 4 way tool post
- X , Z axes rapid traverse
- Meter / Inch community gear box
- Guide way hardened & Ground with wiper
- Tailstock center
- Tool box with tools
- Leveling bolts & pads
- Operation manual
- 25 Inch 3-jaw chuck
- 24 Inch 4-jaw independent chuck
- 1 x Follow Rest [35 ~ 150 mm dia]
- 1 x Steady Rest [300 ~ 530 mm dia]
- 2 axes Digital Readout
- Full length rear splash guard
- Tailstock Quill 140 - 200 mm dia [rotary]
- 12 Inch 3-jaw chuck with back plate
- Work Light
- CE Device : Electrics, screw over, chuck guard, toolpost guard
- Lifting fixture
