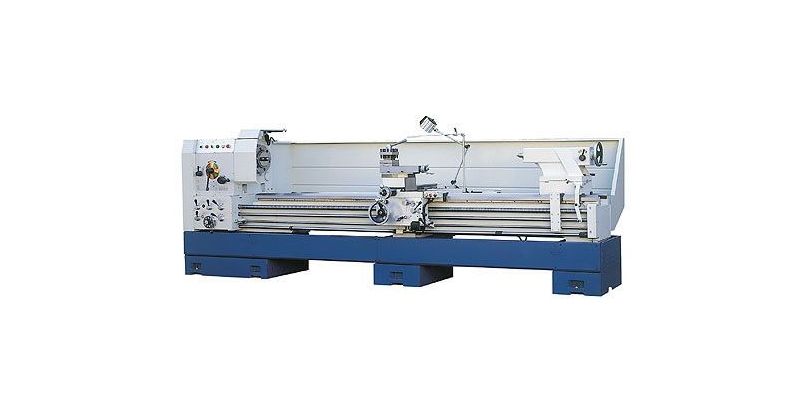

Product: MYDAY 3A-W26120 B4 Oil Country Lathe
335mm centre height, 670mm swing over bed, 460mm swing over cross slide, 890mm swing over gap, 460mm width of gap, 460mm width of bed, 3000mm between centres, 104mm spindle bore
New MYDAY 3A-W2680B4 Lathe.
Features include:
- Swing over bed: 670 mm
- Swing over cross slide: 460 mm
- Swing over gap: 890 mm
- Width of gap: 460 mm
- Width of bed: 460 mm
- Distance between centers: 3000 mm
- Spindle bore: Ø104 mm
- Spindle nose: D1-11
- Spindle speeds (12 Steps): 15-1000 rpm
- Tailstock quill diameter: Ø95 mm
- Taper of center: MT#5
- Quill travel: 230 mm
- Tool size: 25 x 25 mm
- Compound rest travel: 230 mm
- Cross slide travel: 385 mm
- Cross feeds: 0.025-0.35 mm (36 Kinds)
- Longitudinal feeds: 0.05-0.7 mm (36 Kinds)
- Lead screw diameter: Ø45 mm
- Lead screw pitch: 2TPI (inch) or 12 mm (metric)
- Threading range, metric: 0.8-14 mm / Pitch (65 Kinds)
- Threading range, inch: 2-28 TPI (36 Kinds)
- Module pitch threads: 0.5-7 M (22 Kinds)
- DP. pitch threads: 4-56 P (36 Kinds)
- Main spindle motor: 20 HP
- Coolant pump: 1/8 HP
- Machine Weight: 4050 kgs
Included
- Main Motor
- Auto Lubrication System
- Coolant System
- 4 Way Tool Post
- Leveling Bolts & Pads
- Main Spindle Sleeve
- Main Spindle Center
- Tailstock Center
- X, Z Axes Rapid Traverse
- Meter / Inch Community Gear Box
- Tool Box with Tools
- Independent Electrical Box
- Operation & Service Manual in English
