Product: Pro-Plas 1530 (65 Hypertherm)
65A Hypertherm plasma source with 1500 x 3000mm sheet capacity, Starfire CNC controller, 12 months FastCAM Professional, THC height sensor, 16mm maximum material thickness (pierce and cut)

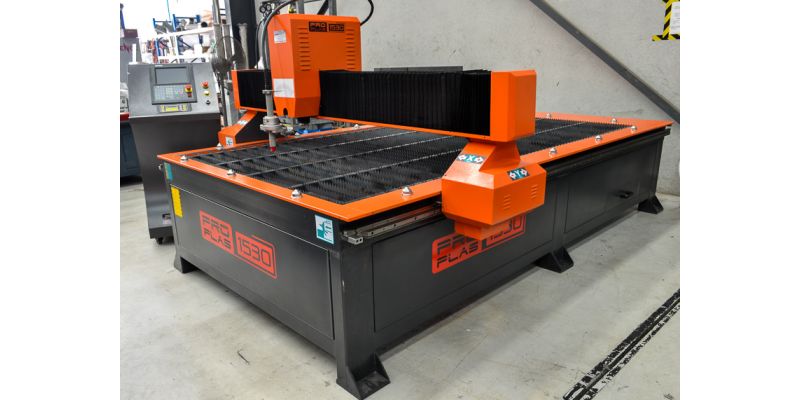

NEW Pro-Plas 1530 CNC Plasma Cutting System.
Features and inclusions:
Work Table & Gantry
- 1500 x 3000mm sheet capacity
- Dual rack and pinion drives
- 10,000mm/min rapid travel
- 50-8,000mm/min cutting speed
- 150mm z-axis travel
- 300mm inbuilt dust extraction fan
- Hiwin linear guides (Taiwan)
- Roller balls to assist with material loading and unloading
Cutting Head
- Hypertherm cutting torch (USA)
- 45 degrees right and left tilt
- THC height sensor (Torch Height Control)
Plasma Source & Cutting Capacity
- 65A Hypertherm Powermax (USA)
- Pierce and cut up to 16mm mild steel
- Maximum edge cut 20-25mm
- Air or nitrogen assist gas
CNC Software
- Fastcam Professional (Auto-Nesting)
- Fontgen module (for simple alphanumeric character programming)
- Save drawings to USB
- All popular DXF and DWG files supported
CNC Control
- Starfire CNC
- 8" LCD colour display
- USB input
- Mobile console
- Template library for quick and easy cutting of standard shapes and angles
- Real-time cutting path
All new Pro-Plas CNC plasma cutting systems from Applied Machinery come with a $300.00 "starter pack" of consumables.
