Product: Rolleri RT M.460. R C

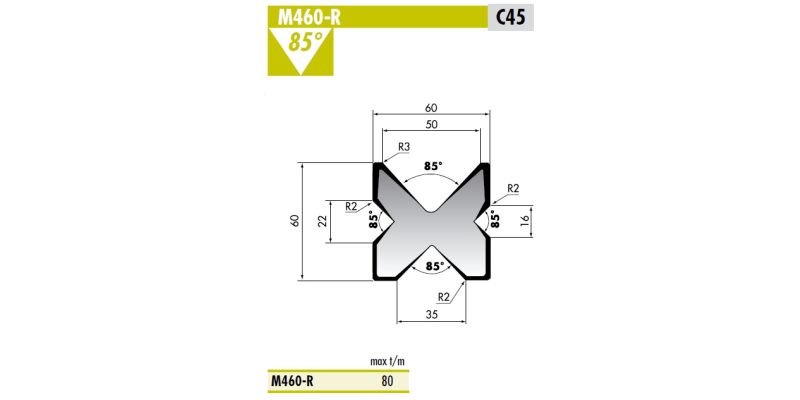

Rolleri 4V Die 415mm
16/22/35/50mm
RT M.460. R/C
16/22/35/50mm
RT M.460. R/C
NEW Ecoca 660-3000 Precision Lathe.
Features include:
- 660mm swing over bed
- 433mm swing over cross slide
- 3024mm between centres
- 890mm swing over gap
- 400mm width of bed
- ASA D1-11 spindle nose
- 105mm spindle bore
- MT7 spindle taper
- 15-1500rpm (12) spindle speeds
- 2-56tpi / P0.5-P14 thread range
- 38mm leadscrew diameter
- 6mm leadscrew pitch
- MT5 tailstock quill taper
- 165mm tailstock quill travel
- 85mm quill diameter
- 15HP main motor
- 200mm max travel of top slide
- 300mm max travel of cross slide
- machine size: 4470 x 1020 x 1300mm
- machine weight: 3350kg (net)
Optional extras :
2 axis digital readout $3,200
3 jaw scroll chuck 310mm $1,100
4 jaw independant chuck 400mm $1,450
Face plate 500mm $550
Work light $175
Taper turning attachmnet $1,400
Rear splash guard $450
Chuck gaurd with limit switch $180
Change gears for DP & Module thread $270
Quick change toolpost $1600
