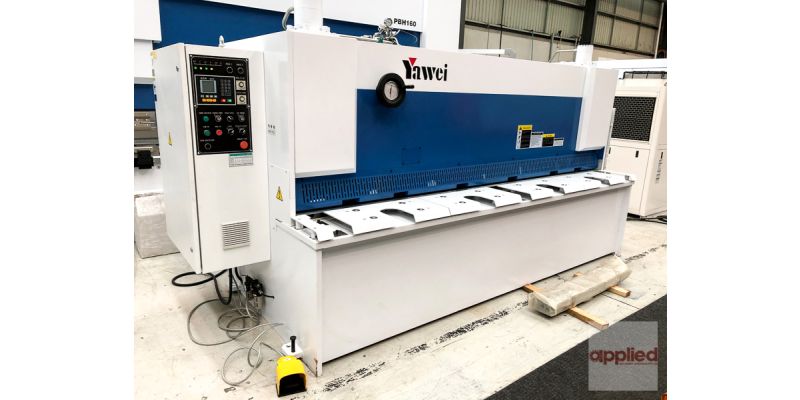

Yawei HGS 6-2500 (E21S)
X Close
More Information
We aim to get back to you as soon as possible
Product: Yawei HGS 6-2500 (E21S)
6mm x 2500mm capacity, Estun E21S control, 18spm, 10-1000mm backgauge stroke, rear sheet support system.
NEW Yawei HGS 6-5000 CNC Hydraulic Guillotine.
Features include:
- 5000mm maximum shearing length
- 6mm sheet capacity (ms)
- 12 strokes per minute
- 10-1000mm backgauge stroke
- ballscrew backgauge driven by AC servo motor
- Rexroth hydraulics
- Sumitomo oil pump
- 3 front squaring support arms with scale
- contoured front finger guards
- rear safety beam
- machine size: 5720 x 2400 x 2500mm (L x W x H *not including rear take out system)
- machine weight: 14500 ton (*not including rear take out system)
CNC control:
- Delem DA360 (Netherlands)
- Bright LCD screen
- Back/Front gauge control
- Retract function
- Cutting angle and blade gap control
- Force control
- Sheet thickness measurement
- Return to sender function
- Sheet support control
Sheet Support System
- CNC controlled rear discharge device incorporating pneumatic sheet support system with raise/fall function and polyurethane conveyor belt for reduced surface marking and material noise.
**DAC360 may be either pendant mounted or inline. TBC by Yawei.
