Product: Yawei HPE-30510
Servo motor driven CNC turret punch press, 30 ton punching force, 1500 x 6000mm maximum sheet size (with one reposition), 6.35mm maximum sheet thickness, Siemens 840D CNC control, 40 station turret.

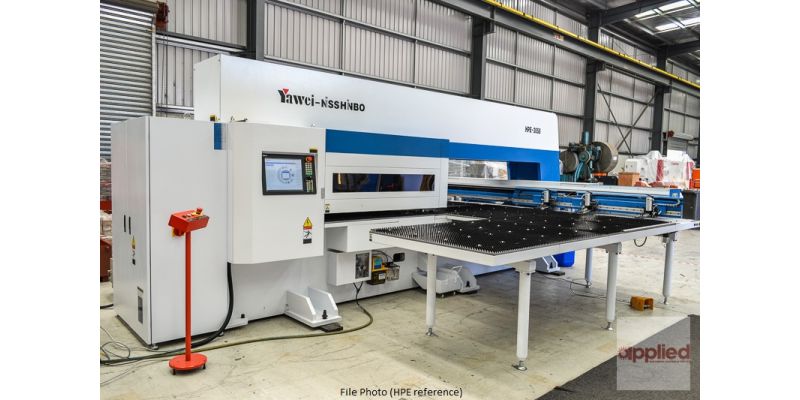

NEW Yawei Nisshinbo HPE-30510 Servo CNC Turret Punch Press.
Features include:
- 30 Ton punching force
- LUSTSP servo punching system (Germany)
- 1500 x 3048mm axis travel
- 102m/min axis travel rate (X and Y)
- 400hpm punch frequency (25.4mm pitch and 6mm stroke)
- 1500 x 6000mm maximum sheet size (with one repositioning)
- 6.35mm maximum sheet thickness
- 40 Station turret with 2 auto index (D)
- 1500spm
- 3 Moveable pneumatic clamps
- Automatic x gauge block
- Brush table
- Strip away detection
- Automatic lubrication system
- Siemens 840D CNC control system
- 5 Axes CNC: X, Y, Z, T, C
- Tool hoisting device
- Metalix CAD system with automatic nesting function
- 5.1kW/h working power
- 0.9kW/h standby power
- Machine weight: 24000kg
- Machine size: 6800 x 6200 x 2260mm (LxWxH)
Optional Extras
- Air blow oil mist system
- Multi tool device
- Programmable movable clamps
- Stainless tables with balls for heavier sheets
- Leitz light guard system
- 38 Station turret with 2 auto index (D) including one fixed E station
For a full write up on the HPE servo series of Yawei Nisshinbo Turret Punch Presses,
please click here: http://bit.ly/W6rCzG
