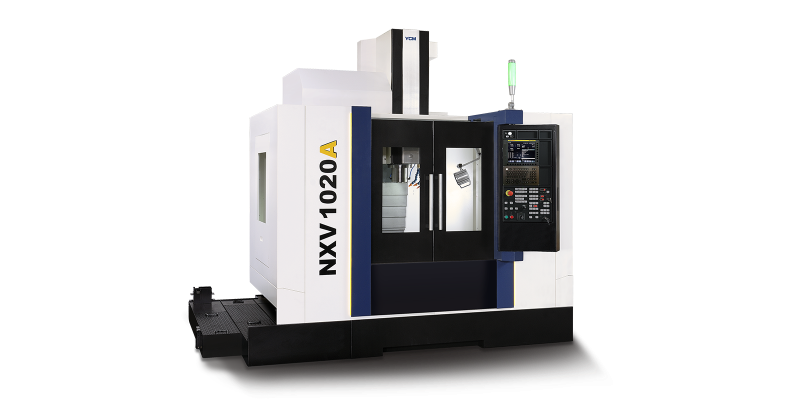

Product: YCM NXV1020A CNC Machining Centre
YCM CNC MACHINING CENTER - MODEL NO: NXV1020A complete with : BBT40 Spindle Taper 12,000rpm Spindle Speed, ATC 30T, FANUC Alpha T8i Spindle Motor (18.5kW)
New YCM CNC MACHINING CENTER
MODEL NO: NXV1020A complete with BBT40 Spindle Taper 12,000rpm Spindle Speed ATC 30T
FANUC Alpha T8i Spindle Motor (18.5kW)
FANUC MXP-300FB+ 15"" Touch Panel Controller
- 15" color TFT LCD, AICCII+
- Manual Guidei Function
- I Operation Plus
- Part program storage length 5120M
- Look Ahead Blocks: 400
- Block Process Time: 1 ms
- X/Y/Z Travel: 1020/520/540 mm
- Table Size: 1120*520 mm
- X/Y/Z Rapid Feed-rate: 48/48/32m/minAuto Power Off
- Two Chip Augers
- Spindle Cooling System
- se lubrication spindle
- Standard Accessories
- Smooth Tolerance Control
- Jerk Control
- Rear side cover
- ATC auto door
- Isolation transformer
- Safety lockswitch on front door, screw fixed type window
- Coolant Through Spindle Function (20 Bar/Form A)
- CF card (2GB)* 2 + Fanuc Program transfer Tool software A08B- 9510-J515
- Lift-up Type Chip Conveyor (ChainType)
- Cable & Wire Preparation for 4th Axis Preparation (apply for pneumatic clamping & βisv-20 Driver)
- CE certification with double circuit protection
