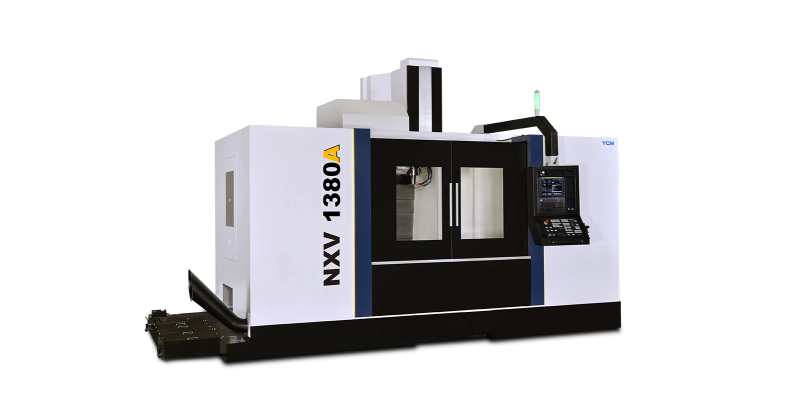

Product: YCM NXV1380A CNC Machining Centre

YCM CNC MACHINING CENTER MODEL NO: NXV1380A COMPLETE WITH: BBT40 Spindle Taper 12,000rpm Spindle Speed, ATC 30T FANUC Alpha T8i Spindle Motor (18.5kW)

New YCM CNC MACHINING CENTER

MODEL NO: NXV1020A complete with BBT40 Spindle Taper 12,000rpm Spindle Speed ATC 30T

FANUC Alpha T8i Spindle Motor (18.5kW)

FANUC MXP-300FB+ 15"" Touch Panel Controller

  • 15" color TFT LCD, AICCII+
  • Manual Guidei Function
  • I Operation Plus
  • Part program storage length 5120M
  • Look Ahead Blocks: 400
  • Block Process Time: 1 ms
  • X/Y/Z Travel: 1020/520/540 mm
  • Table Size: 1120*520 mm
  • X/Y/Z Rapid Feed-rate: 48/48/32m/minAuto Power Off
  • Two Chip Augers
  • Spindle Cooling System
  • se lubrication spindle
  • Standard Accessories
  • Smooth Tolerance Control
  • Jerk Control
  • Rear side cover
  • ATC auto door
  • Isolation transformer
  • Safety lockswitch on front door, screw fixed type window
  • Coolant Through Spindle Function (20 Bar/Form A)
  • CF card (2GB)* 2 + Fanuc Program transfer Tool software A08B- 9510-J515
  • Lift-up Type Chip Conveyor (ChainType)
  • Cable & Wire Preparation for 4th Axis Preparation (apply for pneumatic clamping & βisv-20 Driver)
  • CE certification with double circuit protection
